Building a Real-Time ASCII Art Webcam with AI-Powered Features

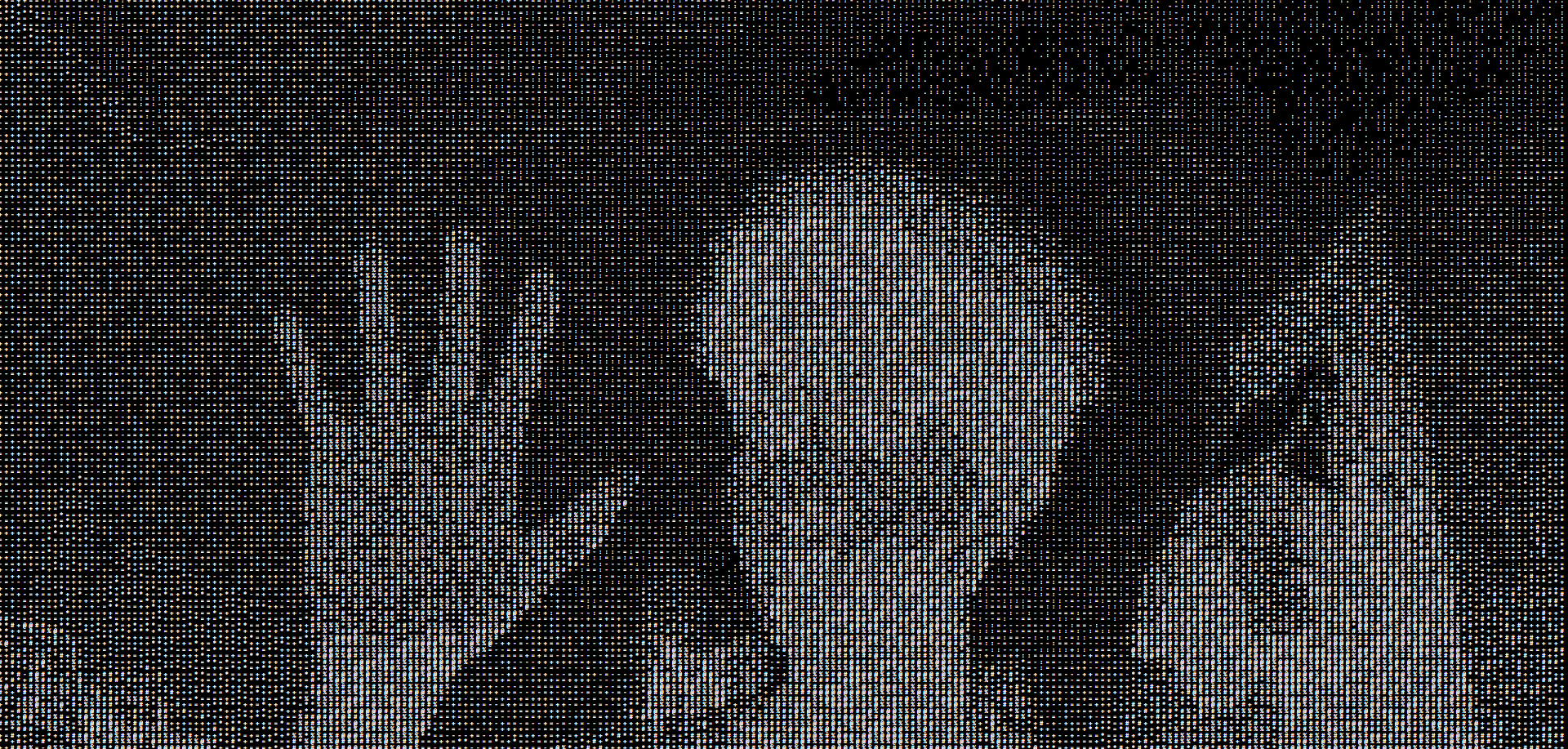

Real-Time ASCII Webcam

Introduction

In this article, I'll walk you through building an advanced real-time ASCII art webcam application that transforms live video feeds into dynamic ASCII characters. This project goes beyond basic ASCII conversion by incorporating AI-powered person detection, particle effects, edge detection, and responsive mobile design.

Live Demo: The application is built with Next.js 15 and deployed on Vercel, featuring a fully responsive interface that works seamlessly on both desktop and mobile devices. https://webcam-ascii-nine.vercel.app/

What Makes This Project Special?

Traditional ASCII art converters are static image processors. This project takes it several steps further:

Real-time processing at 30+ FPS with optimized rendering
AI-powered person segmentation using MediaPipe
Motion-reactive particle system with 11 directional modes
Multiple rendering modes: standard, color, edge detection, and particle dust effects
Mobile-first responsive design with touch-optimized controls
Center-based resolution scaling for smooth visual transitions

Technology Stack

Frontend Framework

Next.js 15.2.4 with React 19 - For server-side rendering and optimal performance
TypeScript - Type safety and better developer experience
Tailwind CSS 4 - Utility-first styling with custom animations

UI Components

shadcn/ui - Beautiful, accessible component library built on Radix UI
- Card, Slider, Switch, Select, Button, Input components for desktop
- Sheet component for mobile bottom drawer
Lucide React - Clean, consistent icon system

Computer Vision & AI

MediaPipe Selfie Segmentation - Real-time person detection and background removal
- Loaded via CDN for better reliability
- Model Selection 1 (landscape mode) for higher quality
- Running inference at video frame rate

Media Processing

react-webcam - Webcam access with React hooks
Canvas API - Hardware-accelerated 2D rendering
ImageData API - Pixel-level manipulation for filters

Core Algorithms Explained

1. ASCII Character Mapping Algorithm

The foundation of ASCII art is mapping pixel brightness to character density. Here's how it works:

// Character sets from darkest to lightest
const asciiChars = "@%#*+=-:. "

// Sample pixel brightness (0-255)
const brightness = (r + g + b) / 3

// Map to character index
const charIndex = Math.floor((brightness / 255) * (asciiChars.length - 1))

// Add randomness for organic feel
const randomOffset = Math.floor(Math.random() * 3) - 1
const finalChar = asciiChars[charIndex + randomOffset]

Key insights:

Brightness is calculated as average of RGB channels
Character index is normalized to array length
Random offset creates a dithering effect, reducing banding artifacts
Inversion option allows dark-on-light or light-on-dark rendering

2. Center-Based Resolution Scaling

Traditional ASCII converters scale from top-left, creating jarring transitions. Our algorithm scales symmetrically from center:

// Find image center
const centerX = width / 2
const centerY = height / 2

// Calculate characters from center to edges
const charsFromCenterX = Math.ceil(width / (2 * spacing))
const charsFromCenterY = Math.ceil(height / (2 * spacing))

// Loop from negative to positive (radial expansion)
for (let row = -charsFromCenterY; row <= charsFromCenterY; row++) {
  for (let col = -charsFromCenterX; col <= charsFromCenterX; col++) {
    const x = centerX + col * spacing
    const y = centerY + row * spacing
    // Render character at (x, y)
  }
}

Benefits:

Smooth zoom-in/zoom-out effects
Maintains focal point during resolution changes
Equal expansion in all directions
Better visual hierarchy

3. Sobel Edge Detection Filter

For artistic effects, we implement the Sobel operator - a discrete differentiation operator that computes image gradient:

const applyEdgeDetection = (imageData: ImageData): ImageData => {
  // Sobel kernels (3x3 convolution matrices)
  const sobelX = [-1, 0, 1, -2, 0, 2, -1, 0, 1]
  const sobelY = [-1, -2, -1, 0, 0, 0, 1, 2, 1]

  for (let y = 1; y < height - 1; y++) {
    for (let x = 1; x < width - 1; x++) {
      let pixelX = 0, pixelY = 0

      // Convolve with kernels
      for (let ky = -1; ky <= 1; ky++) {
        for (let kx = -1; kx <= 1; kx++) {
          const gray = getGrayscale(x + kx, y + ky)
          const kernelIdx = (ky + 1) * 3 + (kx + 1)
          pixelX += gray * sobelX[kernelIdx]
          pixelY += gray * sobelY[kernelIdx]
        }
      }

      // Calculate gradient magnitude
      const magnitude = Math.sqrt(pixelX * pixelX + pixelY * pixelY)
      setPixel(x, y, magnitude)
    }
  }
}

How it works:

SobelX detects vertical edges (horizontal gradient)
SobelY detects horizontal edges (vertical gradient)
Magnitude combines both for full edge strength
Creates dramatic line-art effects

4. AI Person Segmentation with MediaPipe

MediaPipe's Selfie Segmentation runs a deep learning model to separate person from background:

const selfieSegmentation = new SelfieSegmentation({
  locateFile: (file) => `https://cdn.jsdelivr.net/npm/@mediapipe/selfie_segmentation/${file}`
})

selfieSegmentation.setOptions({
  modelSelection: 1, // Landscape model (higher quality)
  selfieMode: true,  // Mirror for selfie use
})

selfieSegmentation.onResults((results) => {
  // results.segmentationMask is ImageData with alpha channel
  // 0 = background, 255 = person
  segmentationMaskRef.current = results.segmentationMask
})

Implementation details:

Model runs at ~30 FPS on modern devices
Mask is 256x256 for efficiency, scaled to video dimensions
Threshold at 0.5 (50% confidence) for binary mask
Enables selective rendering and particle generation

5. Motion-Reactive Particle System

The most complex feature: particles generated at person's edges that respond to movement:

Motion Detection

const detectMotion = (currentFrame: ImageData, previousFrame: ImageData): number => {
  let totalDifference = 0
  const sampleRate = 10 // Check every 10th pixel for performance

  for (let i = 0; i < currentFrame.data.length; i += 4 * sampleRate) {
    const dr = currentFrame.data[i] - previousFrame.data[i]
    const dg = currentFrame.data[i + 1] - previousFrame.data[i + 1]
    const db = currentFrame.data[i + 2] - previousFrame.data[i + 2]
    totalDifference += Math.abs(dr) + Math.abs(dg) + Math.abs(db)
  }

  // Normalize to 0-1 range
  const pixels = currentFrame.data.length / (4 * sampleRate)
  return Math.min(1, totalDifference / (pixels * 255 * 3))
}

Edge Detection on Segmentation Mask

const isEdgePixel = (x: number, y: number, mask: ImageData): boolean => {
  const current = getMaskValue(x, y)
  if (current < 128) return false // Only check person pixels

  // Check 8 neighbors
  const neighbors = [
    getMaskValue(x-1, y-1), getMaskValue(x, y-1), getMaskValue(x+1, y-1),
    getMaskValue(x-1, y),                          getMaskValue(x+1, y),
    getMaskValue(x-1, y+1), getMaskValue(x, y+1), getMaskValue(x+1, y+1)
  ]

  // Edge if any neighbor is background
  return neighbors.some(n => n < 128)
}

Smart Particle Velocity Calculator

const calculateParticleVelocity = (
  direction: string,
  motion: number,
  x: number, y: number,
  centerX: number, centerY: number
) => {
  const baseSpeed = 1.5
  const motionBoost = 1 + motion * 2 // More motion = faster particles

  switch(direction) {
    case "right":
      return { vx: baseSpeed * motionBoost, vy: (Math.random() - 0.5) * 0.5 }
    case "outward": {
      const dx = x - centerX, dy = y - centerY
      const dist = Math.sqrt(dx * dx + dy * dy) || 1
      return {
        vx: (dx / dist) * baseSpeed * motionBoost,
        vy: (dy / dist) * baseSpeed * motionBoost
      }
    }
    case "random":
      return {
        vx: (Math.random() - 0.5) * baseSpeed * motionBoost * 2,
        vy: (Math.random() - 0.5) * baseSpeed * motionBoost * 2
      }
    // ... 8 more directional modes
  }
}

Particle Generation

const generateParticlesFromMask = (
  mask: ImageData,
  imageData: ImageData,
  motion: number
) => {
  const dustMultiplier = dustAmount / 50 // User-controlled density (0-2x)
  const baseGeneration = 50 + motion * 350 // 50-400 particles per frame
  const particleCount = Math.floor(baseGeneration * dustMultiplier)

  let generated = 0
  const maxAttempts = particleCount * 10 // Prevent infinite loops

  for (let attempt = 0; attempt < maxAttempts && generated < particleCount; attempt++) {
    const x = Math.random() * mask.width
    const y = Math.random() * mask.height

    if (isEdgePixel(x, y, mask)) {
      const {vx, vy} = calculateParticleVelocity(
        particleDirection, motion, x, y, centerX, centerY
      )

      particles.push({
        x, y, vx, vy,
        char: asciiChars[Math.floor(Math.random() * asciiChars.length)],
        color: getPixelColor(x, y, imageData),
        opacity: 1,
        age: 0,
        maxAge: 60 + Math.random() * 60, // 1-2 seconds at 60fps
        size: resolution * scale * (0.7 + Math.random() * 0.5)
      })
      generated++
    }
  }
}

Particle Physics and Rendering

const updateParticles = () => {
  particles = particles.filter(particle => {
    // Apply velocity
    particle.x += particle.vx
    particle.y += particle.vy

    // Physics simulation
    particle.vx *= 0.985  // Air friction
    particle.vy *= 0.98   // More vertical damping
    particle.vy -= 0.05   // Slight upward lift
    particle.vx += (Math.random() - 0.5) * 0.1 // Turbulence

    // Age and fade
    particle.age++
    const ageRatio = particle.age / particle.maxAge
    particle.opacity = Math.pow(1 - ageRatio, 2) // Quadratic fade

    // Remove dead particles
    return particle.age < particle.maxAge
  })
}

const renderParticles = (ctx: CanvasRenderingContext2D) => {
  particles.forEach(particle => {
    ctx.font = `bold ${particle.size}px monospace`
    ctx.textAlign = "center"
    ctx.textBaseline = "middle"
    ctx.globalAlpha = particle.opacity
    ctx.fillStyle = particle.color
    ctx.fillText(particle.char, particle.x, particle.y)
  })
  ctx.globalAlpha = 1
}

System capabilities:

Maintains up to 4000 active particles
Generates 50-400 particles per frame based on motion
11 directional modes: right, left, up, down, 4 diagonals, outward, inward, random
Motion detection amplifies generation and velocity
Smooth physics with friction, lift, and turbulence
Quadratic opacity fade for graceful disappearance

6. Wave Mode Animation

Wave mode creates a breathing effect by oscillating resolution:

useEffect(() => {
  if (!waveMode) return

  let direction = 1 // 1 for increasing, -1 for decreasing
  let pauseCounter = 0
  const pauseDuration = Math.floor(4500 / waveSpeed) // 4.5 second pause

  const interval = setInterval(() => {
    setResolution(prev => {
      const next = prev + direction

      // Pause at endpoints
      if (next >= 100 || next <= 2) {
        pauseCounter++
        if (pauseCounter >= pauseDuration) {
          direction *= -1
          pauseCounter = 0
        }
      }

      return Math.max(2, Math.min(100, next))
    })
  }, waveSpeed)

  return () => clearInterval(interval)
}, [waveMode, waveSpeed])

Features:

Smooth transitions from high to low resolution
4.5-second pause at endpoints to appreciate detail
Configurable speed (10-200ms per step)
Creates hypnotic "breathing" effect

7. Responsive Mobile Design

The UI adapts seamlessly between desktop and mobile:

// Mobile detection with resize handling
useEffect(() => {
  const checkMobile = () => setIsMobile(window.innerWidth < 768)
  checkMobile()
  window.addEventListener('resize', checkMobile)
  return () => window.removeEventListener('resize', checkMobile)
}, [])

// Conditional rendering
return (
  <div className="relative w-screen h-screen bg-black">
    <Webcam
      style={{
        width: isMobile ? '120px' : '200px',
        height: (isMobile ? 120 : 200) / videoAspectRatio + 'px'
      }}
    />

    {!isMobile && (
      <Card className="absolute top-4 left-4 w-80">
        {/* Collapsible sidebar with all controls */}
      </Card>
    )}

    {isMobile && (
      <Sheet>
        <SheetTrigger>
          <Button className="fixed bottom-4 left-1/2 -translate-x-1/2">
            <Settings /> Controls
          </Button>
        </SheetTrigger>
        <SheetContent side="bottom" className="h-[80vh]">
          {/* Same controls, optimized for touch */}
        </SheetContent>
      </Sheet>
    )}
  </div>
)

Mobile optimizations:

Bottom sheet (drawer) instead of sidebar
Smaller webcam preview (120px vs 200px)
Touch-friendly controls (44px minimum touch targets)
Scrollable content area with 80vh height
Repositioned webcam to top-right to avoid button overlap

Performance Optimizations

1. Efficient Frame Processing

Canvas operations run on GPU
Downsampled video (1920x1080) before ASCII conversion
Skip frames if processing takes > 33ms (maintain 30fps)

2. Smart Particle Management

// Particle pool with fixed capacity
const MAX_PARTICLES = 4000
if (particles.length >= MAX_PARTICLES) {
  particles.splice(0, particleCount) // Remove oldest
}

// Spatial sampling for edge detection
const sampleRate = 10 // Check every 10th pixel
for (let i = 0; i < data.length; i += 4 * sampleRate) {
  // Process pixel
}

3. React Optimization

// Use refs for high-frequency updates (avoid re-renders)
const particlesRef = useRef<Particle[]>([])
const motionIntensityRef = useRef<number>(0)

// Memoize expensive calculations
const webcamPreviewWidth = isMobile ? 120 : 200
const webcamPreviewHeight = webcamPreviewWidth / videoAspectRatio

4. MediaPipe Optimization

Load via CDN (reduces bundle size)
Model Selection 1 (landscape) for quality/performance balance
Reuse segmentation mask across frames (30fps model inference)

Key Features Overview

Visual Modes

Standard ASCII - Classic monochrome character rendering
Color Mode - RGB colors from webcam mapped to characters
Edge Detection - Sobel filter for line-art effect
Particle Dust - Motion-reactive particles at person edges

ASCII Customization

10 Preset Character Sets: Standard, Detailed, Simple, Blocks, Numbers, Binary, Dots, Slashes, Hearts, Stars
Custom Character Input: Define your own brightness-to-character mapping
Brightness Inversion: Dark-on-light or light-on-dark rendering

Person Detection Features

AI Segmentation: MediaPipe isolates person from background
Selective Rendering: Only render ASCII for detected person
Edge-Only Particles: Particles generated at person's outline

Particle System Controls

Dust Amount: 0-100% slider for particle density
11 Directional Modes:
- Cardinal: Right, Left, Up, Down
- Diagonal: Top-Right, Top-Left, Bottom-Right, Bottom-Left
- Special: Outward (explode), Inward (implode), Random
Motion-Reactive: Movement amplifies generation and speed

Animation Modes

Wave Mode: Breathing resolution animation with endpoint pauses
Shuffle Mode: Auto-randomize ASCII characters at intervals
Configurable Speed: Fine-tune animation timing

Responsive Design

Desktop: Collapsible sidebar with full controls
Mobile: Bottom sheet drawer with touch-optimized UI
Adaptive Webcam: Scales to device size while maintaining aspect ratio
Center-Based Scaling: Resolution changes expand from center

Lessons Learned

1. MediaPipe Integration Challenges

Problem: npm package had loading issues in browser environments.

Solution: Load MediaPipe from CDN and access via window object. More reliable and reduces bundle size.

const script = document.createElement('script')
script.src = 'https://cdn.jsdelivr.net/npm/@mediapipe/selfie_segmentation/selfie_segmentation.js'
await loadScript(script)
const SelfieSegmentation = (window as any).SelfieSegmentation

Takeaway: For browser-based ML libraries, CDN loading can be more stable than npm packages.

2. Performance vs. Quality Trade-offs

Challenge: Running edge detection + segmentation + particle physics at 30+ FPS.

Solution:

Sample every 10th pixel for motion detection (10x speedup)
Limit particle generation attempts
Use quadratic fade instead of linear (appears slower, fewer frames)

Takeaway: Perceptual optimization often beats computational optimization.

3. Center-Based Scaling for Better UX

Initial Approach: Standard grid from top-left corner.

Problem: Resolution changes felt jarring and unfocused.

Solution: Calculate grid positions radially from center point.

for (let row = -charsFromCenterY; row <= charsFromCenterY; row++) {
  for (let col = -charsFromCenterX; col <= charsFromCenterX; col++) {
    const x = centerX + col * spacing
    const y = centerY + row * spacing
  }
}

Takeaway: Small algorithmic changes can dramatically improve perceived quality.

4. Mobile-First Responsive Design

Initial Approach: Desktop-only sidebar.

Problem: Controls cut off on mobile, poor touch experience.

Solution: Conditional rendering with Sheet component for mobile.

Takeaway: Test on real mobile devices early. Simulators don't catch touch ergonomics issues.

5. Particle Physics for Organic Feel

Challenge: Static particles looked artificial.

Solution: Add multiple physics forces:

Velocity decay (air friction)
Upward lift (buoyancy)
Random turbulence
Motion amplification

Takeaway: Combine multiple subtle effects for emergent organic behavior.

6. User Control is King

Insight: Users want to explore and customize.

Implementation:

10 ASCII presets + custom input
11 particle directions
Adjustable dust amount
Toggle every feature independently

Takeaway: Flexibility > Perfect defaults. Let users create their own experience.

7. Async Loading and Error Handling

Challenge: MediaPipe can fail to load, breaking the app.

Solution:

try {
  await loadMediaPipe()
  setIsSegmentationReady(true)
} catch (error) {
  console.error("MediaPipe failed to load:", error)
  // Gracefully disable features requiring segmentation
}

Takeaway: Always plan for external dependencies to fail.

Technical Architecture Decisions

Why Next.js 15?

Server Components: Optimize initial load
App Router: Better routing and layouts
Image Optimization: Built-in performance
Vercel Integration: Seamless deployment

Why Canvas over WebGL?

Simplicity: 2D operations are sufficient
Compatibility: Works everywhere, no fallbacks needed
Text Rendering: Native font support
Debugging: Easier to inspect and profile

Why Refs over State?

Performance: Avoid re-renders for 60fps updates
Direct Manipulation: Access DOM and data structures directly
React 19: Better ref handling with new APIs

Why TypeScript?

Type Safety: Catch errors at compile time
Intellisense: Better developer experience
Refactoring: Safe large-scale changes
Documentation: Types serve as inline docs

Future Enhancements

Planned Features

Export Functionality
- Save ASCII frames as images
- Record video with ASCII effect
- Generate GIF animations
More AI Models
- Pose detection for skeleton particles
- Hand tracking for interactive effects
- Facial landmarks for targeted rendering
Advanced Particle Effects
- Particle trails
- Collision detection
- Attraction/repulsion forces
- Gravity wells
Audio Reactivity
- Microphone input
- Frequency analysis
- Beat detection
- Audio-driven particle generation
Shader Integration
- WebGL for advanced effects
- Custom GLSL shaders
- Post-processing pipeline
- Bloom and glow effects
Social Features
- Share presets with community
- Remix others' configurations
- Gallery of user creations
- Real-time collaborative sessions

Conclusion

Building this ASCII webcam project taught me that modern web technologies enable real-time computer vision applications that were once the domain of native apps. The combination of:

Canvas API for rendering
MediaPipe for AI segmentation
TypeScript for maintainability
Next.js for performance
shadcn/ui for beautiful UX

...creates a powerful stack for creative coding projects.

The key insights:

Performance matters: Optimize hot paths ruthlessly
User experience trumps features: Polish core interactions first
Progressive enhancement: Make features optional and fail gracefully
Mobile-first: Touch interfaces require different thinking
Creative freedom: Give users tools, not prescriptions

Try It Yourself

The full source code is available on GitHub. Clone the repository https://github.com/duckvhuynh/webcam-ascii and run:

npm install
npm run dev

Open http://localhost:3000 and grant webcam permissions. Start with Wave Mode enabled, then explore User Detection with Particle Mode for the full experience.

Acknowledgments

MediaPipe Team for open-source ML models
shadcn for beautiful UI components
Vercel for hosting and Next.js framework
ASCII Art Community for inspiration
